High Performance Cat 6 Cat6 FTP 22 23 24 AWG Pure Copper Network Lan Bulk Ethernet Cable 305m 1000ft Box
Product Description

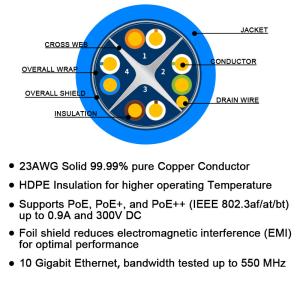

Engineering Series-----Cat6 F/UTP 23AWG (0.58mm) Solid Pure Oxygen-free Copper (purity: 99.99%) Lan Cable
Features and Benefits: • Designed and engineered with precision balance to offer ultimate headroom.
• Foil shield reduces electromagnetic interference (EMI) for optimal performance. • Ensures increased headroom for future applications, lower bit-error rates, and higher signal transmission quality.
• 8*23AWG(0.58mm) or 24AWG(0.51mm) Solid Pure Copper Conductor. • High-end optimized performance to support the most bandwidth-intense applications, average 1 Gigabit and up to 10 Gigabit.
• Supporting IEEE 802.3af POE & POE+, DC 300V. • Performance guaranteed to 250 MHz, highest up to 550 MHz. • Low MOQ starting at 10 rolls for regular specification in stock. • Improved cable temperature rating (75°C Riser) for greater protection against increased operating temperatures and for high-wattage applications. • FLUKE Test Passed.
Applications:
• IEEE 802.3: 1000 BASE-T, 100 BASE-TX, 10 BASE-T, 2.5G BASE-T, 5G BASE-T, 10G BASE-T(less than 45m), POE, POE+ • ANSI/TIA 854: 1000 BASE-TX • CDDI, Token Ring, ATM (155 Mbps and 622-Mpbs) • Digital Video • Broadband and Baseband Analog Video
Standard Compliances
• ANSI/TIA 568.2 C.2 • TIA/EIA-568-C.2 Category 6 • ANSI/ICEA S-90-661 Category 6 • NEMA WC63.1 Category 6 • ANSI/TIA 862 (Building Automation) • NEC/CEC Type CM (UL 1666) for Non-Plenum • RoHS Compliance for the Requirement of European Union Issued Directive 2002/95/EC | | Regular Specification(10 rolls) | OEM Optional (MOQ: 20000m) |
| | 24 AWG (0.51±0.015mm ) or 23 AWG (0.56±0.015mm) | |
| | | |
| | | |
| | | S/FTP, U/UTP, Double Jacket LSZH+PVC UTP or FTP |
| | 0.95±0.1mm High Density Polyethylene (HDPE) | |
| | • Pair 1: Blue-White/Blue • Pair 2: Orange-White/Orange • Pair 3: Green-White/Green • Pair 4: Brown-White/Brown | |
| | | |
| | | |
| | | |
| | | |
| | 24 AWG solid tinned copper | |
| | | |
| | | |
| | | |
| | | |
| | | |
| | | |
Temperature Rating (˚C) Installation: Operation: | | |
| ELECTRICAL CHARACTERISTICS |
| DC Resistance (max) Ohms/100 m (328 ft) @ 20˚C | 9.38 |
| DC Resistance Unbalance (max) Individual Pair % | 4.0 |
| Delay Skew (max) ns/100 m | 45 |
| Nom. Velocity of Propagation % Speed of Light | 70 |
| Characteristic Impedance Frequency (f): 1-350 MHz | Ohms 100 ± 15 |
| ELECTRICAL PERFORMANCE |
| | | | |
| | | | |
| | | | |
| | | | |
| | | | |
| | | | |
| | | | |
| | | | |
| | | | |
| | | | |
| | | | |
| | | | |
| | | | |
| | | | |
| | | | |
Packing & Shipping
1) Packing Lengths: 100/roll, 200m/roll, 300m/roll, 305m/roll, 500m woden reel, 1000m wooden reel
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
5) Usually we deliverour products by SEA. Other delivery methods are available upon request from clients.
3.Our service
1) Quick Response -- All inquiries will be replied within 24 hours.
Professional Quotation -- All pricing will be quote according to customers' detailed specifications & requirements.
2) OEM & ODM Service -- Can print your own brand on the cable printing with foot or meter marking. -- Make customized designs for stickers, drums, outer cartons, etc.
3) Stable Quality -- All materials and products passed restrict QC procedures, compliant with international standards.
4) Fast Delivery -- LCL orders, 15 Days after confirmation; FCL orders, 20 days after confirmation.
5) Good After-sales Service -- We chose the fastest vessel to POD for delivery our goods to clients, -- All Documents will be issued according to clients' instructions, to save troubles from local customs. -- Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.
4.What is the process of an order?
Send your detailed request → Feedback with quotation → Confirm quotation and make payment → Make artwork for approval→Make mould→Mold testing→Making samples→Sample testing(Approval) →Mass production→Quality checking→Packing →Delivery →After Service→Repeat Order...
5. Good after-Sale Service.
1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
5. Faster delivery
Sample order in stock, and 3-7 days for bulk production.
6. Shipping:
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Post.
6.FAQ
Q1: Are you a factory or trading company?
A1: We are a manufacturer.
Q2: Where is your factory located? How can I visit there?
A2:Our factory are located in dongguan city.
You can fly to Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.
Q3: May I buy samples from you?
A3: Yes! You are welcome to place sample order to test our superior quality and services.
Q4: What is your Warranty?
A4: All the products will have 12 months Warranty
Q5:What payment method do you accept?
A5:T/T(Bank transfer), , Money Gram, Paypal, etc.
Q6: Can you put my brand name (logo) on these products?
A6: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q7: May I know the status of my order?
A7: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
Q8: What’s the leading time? (How long do you need to prepare my goods?
A8: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment, and arrive you within about 3-7 working days via international express.
Q9: How will you deliver my goods to me?
A9: Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.
Q10: Can you provide us more other products to us to help us to save more shipping costs?
A10: Yes. There’re kinds of HDMI Cables, VGA Cables, DVI Cables, Data USB cables, Display port on DB 9, DB 25, Aux Audio and video Cables, Cat network LAN Cables will be the main products line of Nengjie Factory. The OEM bulk order will be accept as well
Our Factory Are Professional Manufacturer In Producing Widely Product Range Cat5/Cat5e/Cat6/Cat6a/Cat7/Cat8
Utp/Ftp/Sftp/Stp Network Cable,
Power Cable,Coaxial Cable,
Telephone Cable Etc.
Welcome To Visit Our Factory !
